Contex HD Ultra X Scanner

SETTING NEW STANDARDS FOR SCANNING

Contex HD Ultra X Scanners

Delivering exceptional scanning speeds at the highest possible detail and colour clarity this premium large format CCD scanner is one of the the most efficient and flexible scanners on the market today.

Speed up production

Accelerate your production workflow with scanning speeds of up to 17.8 inches per second in both  colour and black and white (200dpi).

  • Scanning speeds of 3.41 seconds per A1 scan (200dpi colour)
  • Scanning speeds
    of up to 17.5 inches
    per second
    (200dpi colour)
  • xDTR transfer technology
  • xDTR transfer technology
  • Gigabit throttling buffer control
  • Gigabit throttling buffer control
  • Instant on feature
  • Instant-on feature

Fits your digital workflow

Compatible with wide array of software packages and large format printers the HD Ultra X is astonishingly versatile. Automated paper thickness control, intelligent document size detection, and the ability to handle challenging documents effortlessly means you can just keep scanning, boosting productivity and winning new business.

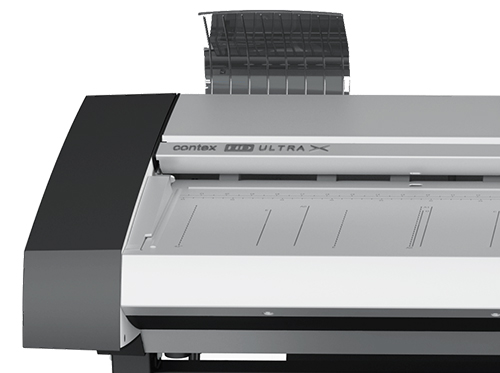

  • optimised thickness adjustment control
  • Optimised
    thickness adjustment control
  • True size detection
  • True size
    detection

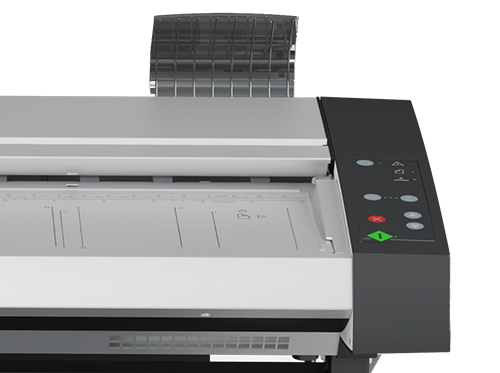

  • Preset speed controls
  • Preset speed controls
  • Support for over 300 printers
  • Support for over 300 printers

Best ever scan quality

Using the very latest in CCD camera technology, specially designed Fujifilm lenses and perfect light LED lighting gives the Contex HD Ultra X an outstanding 7mm focus depth that enables you to capture the tiniest of detail.

  • 1200dpi optical scanning resolution
  • 1200dpi optical scanning resolution
  • Quadlinear CCD Scanning Technology
  • Quadlinear CCD Scanning Technology
  • Perfect Light LED technology
  • Perfect Light LED technology

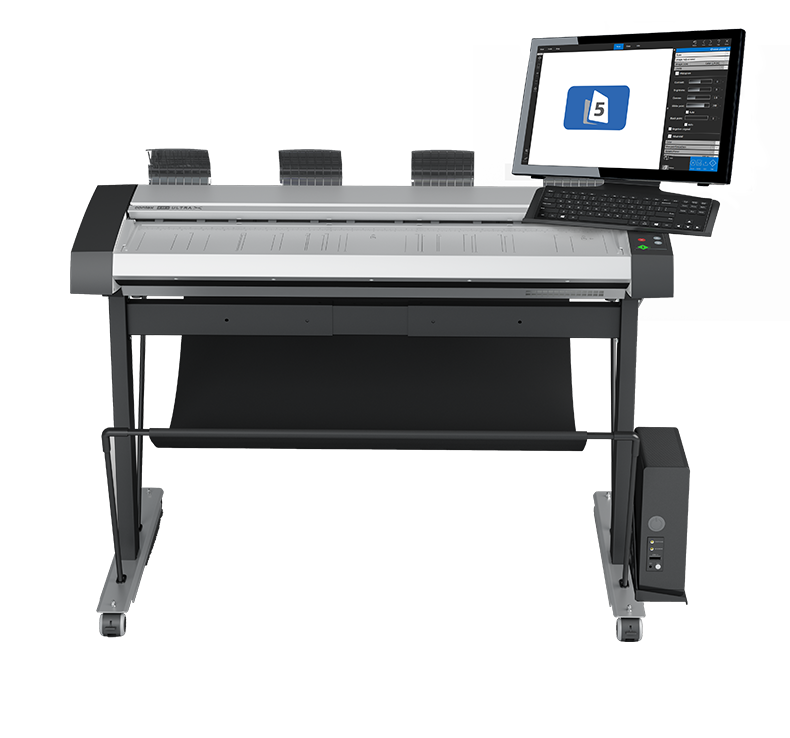

Scan, enhance, save

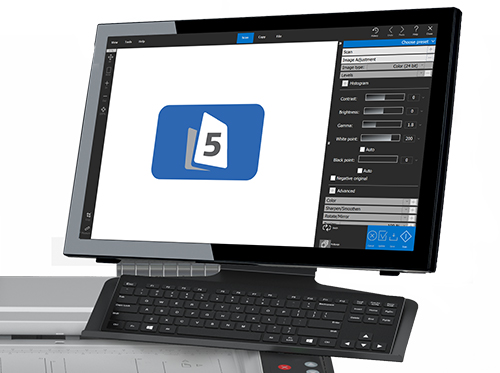

Designed to optimise your scanning results Nextimage 5 brings out unseen detail and restores even the faintest of originals. Scan in vibrant sRGB, Adobe RGB or event full 48 bit colour

  • Intelligent sharpen / smoothing filters
  • Intelligent sharpen / smoothing filters
  • Adaptive thresholding
  • Adaptive thresholding
  • Simple and powerful GUI with clear controls
  • Simple and powerful GUI with clear controls
  • 48 bit colour capture
  • 48 bit colour capture

AWARDS / REVIEWS

  • Our customers are thrilled with the capabilities of the HD Ultra X scanners, and the new models give them even more options to suit their requirements.  Productivity, improved workflow, and colour matching have been the center of our attention, and our customers can instantly benefit from these advancements the HD Ultra X scanner series.
  • Jacob Bendix
  • CCO and VP of Global Sales and Marketing
  • The HD Ultra X is the fastest collection of scanners weve ever made. With a top speed of up to 17.8 inches per second, you can increase your workflow tempo significantly. You can also switch between three different speed levels directly on the scanners intuitive touch panel. If speed doesnt impress you, look at the width.
  • Jacob Bendix
  • CCO and VP of Global Sales and Marketing

SPECIFICATIONS

  • Maximum Scanning Width
    • HD Ultra X 6090 - 60 inches (1524mm)
      HD Ultra X 6050 - 60 inches (1524mm)
      HD Ultra X 4290 - 42 inches (1067mm)
      HD Ultra X 4250 - 42 inches (1067mm)
      HD Ultra X 3690 - 36 inches (914mm)
      HD Ultra X 3650 - 36 inches (914mm)
  • Maximum Scanning Speed
    (RGB Colour, 200dpi)
    • HD Ultra X 6090 - 17.8 inches per second
      HD Ultra X 6050 - 8.9 inches per second
      HD Ultra X 4290 - 17.8 inches per second
      HD Ultra X 4250 - 8.9 inches per second
      HD Ultra X 3690 - 17.8 inches per second
      HD Ultra X 3650 - 8.9 inches per second
  • Maximum Scanning Speed
    (Monochrome, 200dpi)
    • HD Ultra X 6090 - 17.8 inches per second
      HD Ultra X 6050 - 17.8 inches per second
      HD Ultra X 4290 - 17.8 inches per second
      HD Ultra X 4250 - 17.8 inches per second
      HD Ultra X 3690 - 17.8 inches per second
      HD Ultra X 3650 - 17.8 inches per second
  • Productivity
    (A0 documents per hour)
    • HD Ultra X 6090 - 903
      HD Ultra X 6050 - 537
      HD Ultra X 4290 - 903
      HD Ultra X 4250 - 537
      HD Ultra X 3690 - 903
      HD Ultra X 3650 - 537
  • Maximum Media Width
    • HD Ultra X 60xx - 61.8 inches (1570mm)
      HD Ultra X 42xx / 36xx - 43.3 inches (1100mm)
  • Optical Resolution
    • 1200dpi
  • Maximum Resolution
    • 9600dpi
  • CCD Cameras
    • HD Ultra X 60xx
      7 x 4 linear CCDs (RGB & Gray)
      HD Ultra X 42xx
      5 x 4 linear CCDs (RGB & Gray)
  • Depth of Focus
    • 0.3 inches (7mm)
  • Maximum Media Thickness
    • 0.6 inches (15mm)
  • Total Number of Pixels
    • HD Ultra X 60xx - 299,040 pixels
      HD Ultra X 42xx / 36xx - 213,600 pixel
  • Accuracy
    • 0.1% +/- pixel
  • Data Capture (colour/mono)
    • 48 bit colour / 16 bit grayscale
  • Colour space
    • Adobe RGB, Device RGB, RAW RGB, sRGB
  • USB 3.0 with xDTR3
    • Yes
  • Gigabit Ethernet with xDTR2.5
    • Yes
  • Network Workflow
    • Pull/Push
  • Software
    • WIDEsystem (driver), NextImage 5, iOS app (portable device), Android tablet/phone OS
  • File Formats
    • Big TIFF, TIF, JPG, PDF, PDF/A, DWF, CALS, BMP, JPEG-2000(JP2), JPEG2000 Extended (JPX), TIF-G3, TIF-G4, multi-page PDF and others
  • Device Drivers
    • 64-bit Windows 10, Windows 8, Windows 7
  • Nextimage TWAIN
    • 64-bit TWAIN application driver included for use with EDM and other imaging software
  • Power Consumption
    • Ready: Max 39W, Sleep mode: <1W, Scanning: 130W built-in power supply
  • Weight and Dimensions
    • HD Ultra X 60xx
      1810mm x 540mm x 279mm - 62.5kg
      HD Ultra X 42xx / 36xx
      1360mm x 540mm x 279mm - 49.3kg
  • Certifications / Compliance
    • RoHS, cUL, CE, Customs Union, CCC, VCCI, Ukr, ENERGYSTAR certified
  • Country of Origin
    • Designed and engineered in Denmark, manufactured in China
  • TAA Compliant Scanners
    • TAA compliant scanners are for US customers only and are assembled in Denmark
  • Minimum PC Specification
    • Intel Core Duo, Core 2 Duo or better, 8GB Ram, 7,200rpm HDD.
  • Recommended PC Specification
    • Intel Core i7 4700K 3.5Ghz, 16GB RAM, 1TB SSD, USB 3.0 SuperSpeed, Windows 64bit
