HP DesignJet XL 3800 Series Printer

PRINT PRODUCTIVITY AT ITS BEST

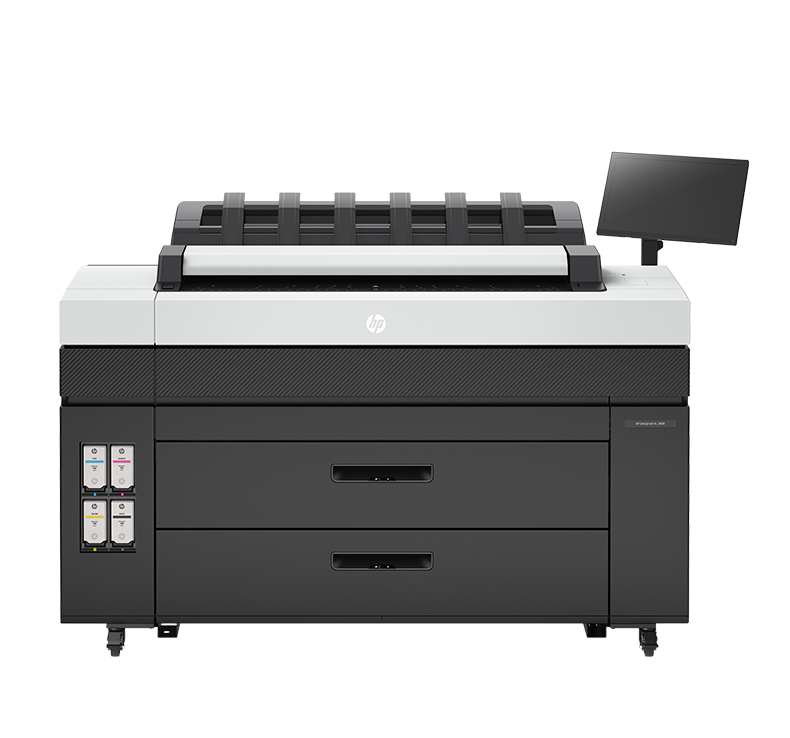

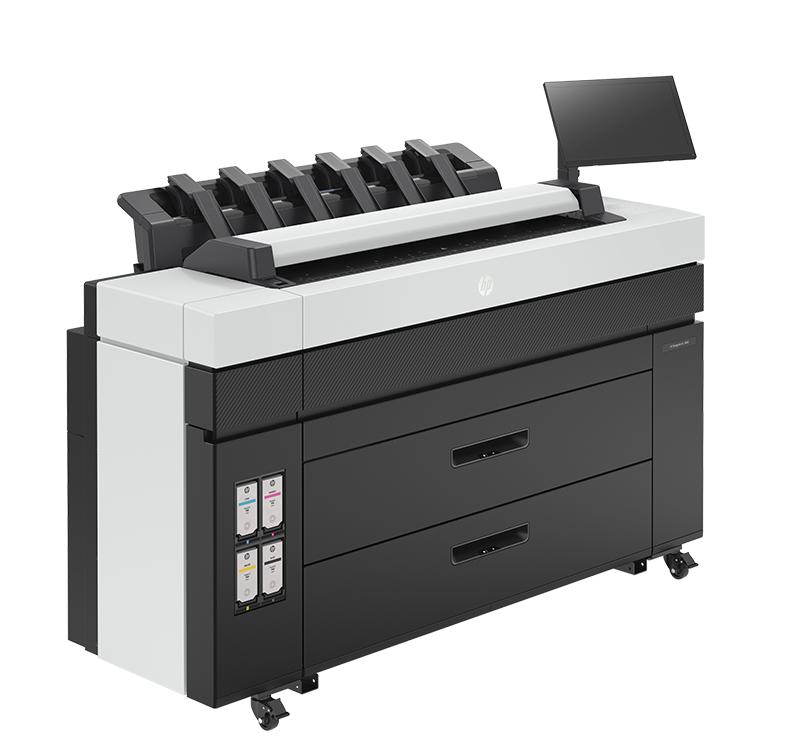

HP DesignJet XL 3800 Series Printer

Delivering top quality CAD drawings and graphic renders at blisteringly fast speeds, the HP DesignJet XL 3800 multifunction printer keeps your jobs moving forward and keeps your teams more productive.  Its robust and compact design and increadibly low running costs makes it suitable for the most demanding of print environments.

BUY NOW

Exceptional print performance

Achieve exceptional print quality and colour accuracy at lightning speeds thanks to HPs revolutionary thermal Inkjet printhead technology and HP's new Flex Tech pigmented inks.

  • Print speeds of up to 19 seconds per A1 print (economode)
  • Print speeds of up 10 seconds per A1 print (economode)
  • 2400 x 1200 dpi print resolution
  • 2400 x 1200 dpi print resolution
  • 6 colour (C,M,Y,G,pK,mK) dye & pigment ink
  • 4 Colour (C,M,Y,mK) Pigment Flextech Ink
  • First page out in 20 seconds
  • First page out in 20 seconds

True production printing

Sporting heavy-duty roll feeds and high capacity ink cartridges. This highly robust printer and compact designed printer is capable of handling the most demanding of print jobs in the most compact of office environments.

  • Heavy duty front loading single or dual roll feed
  • Heavy duty dual roll feed
  • High capacity 500ml ink cartridges
  • High capacity 500ml ink cartridges

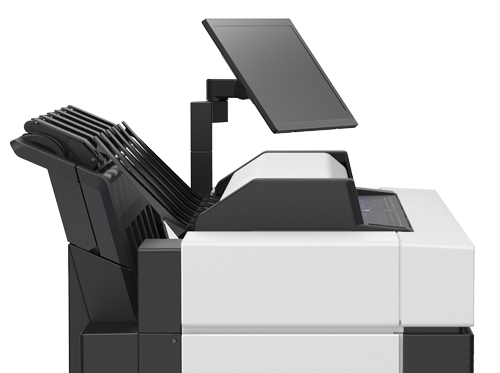

  • Integrated 100 sheet output stacker
  • Integrated 100 sheet output stacker
  • Robust and compact design
  • Robust and compact design

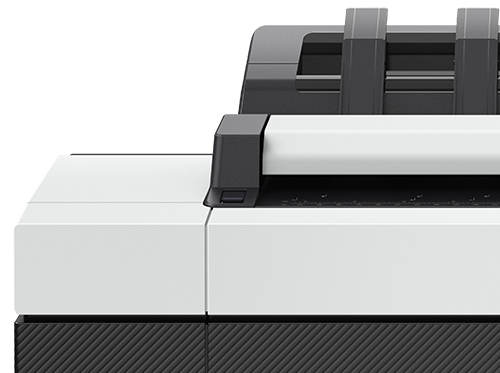

One click copying and scanning

Experience easy, one click copying and scanning with the HP DesignJet XL 3800 fully integrated scanner that an that can share uploaded scans immediately out to the cloud or to clients securly for a truely collaborative workflow.

  • 600dpi optical scanning resolution
  • 600dpi optical scanning resolution
  • Scanning speeds of 6 seconds per A2 scan (200dpi colour)
  • Scanning speeds of up to 10 inches per second (200dpi colour)
  • CIS scanning technology
  • CIS scanning technology
  • Built-in HP Wolf Enterprise Security
  • Built-in HP Wolf Security

Simple optimised operation

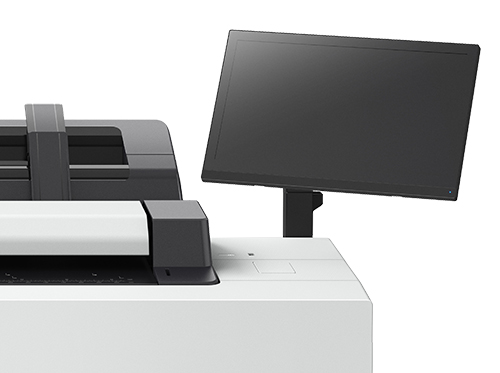

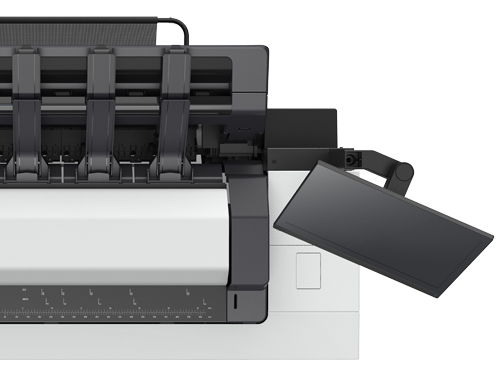

Manage and operate this printer with ease thanks to a highly intuitive and easy to use high resolution 15 inch touchscreen interface and a radically powerful set of software tools that can improve your printing experience.

  • High resolution touchscreen interface
  • High resolution 15 inch touchscreen interface
  • Print direct from memory stick
  • Print direct from memory stick
  • WiFi enabled
  • Monitor the status of your printer remotely with HP Command Center
  • Radically simple printing via HP Click
  • Radically simple printing via HP Click

AWARDS / REVIEWS

  • HP multifunction printers open new ways to help professional teams communicate and collaborate using a single device. Our customers are increasingly demanding solutions that enable them to share easily, including agile transitions from digital to hard copy and back. Its amazing to bring the most advanced HP printing technologies to support the teamwork of architects and engineers designing and building the future.
  • Guayente Sanmartn
  • General Manager and Global Head, HP Inc
  • Architectural drawings are at the heart of what we do as contractors, and getting them to the site quickly is key. However, outsourcing our large-format printing was causing delays and costing money. HPs innovative new large-format printers and MFPs simplify collaboration with next-level features and mobile printing capabilities to meet this blended reality and print whatever and wherever AEC professionals need.
  • Neil Geraghty
  • Duke Construction.
  • Theres definitely a need for large format printers when it comes to collaboration, when it comes to meeting presentations, that sort of thing. Were seeing demand changing from very high-end units that were printing very high volumes to more decentralised printing. Were also seeing a lot more printing on the construction site. OK, so lower volumes per job, but the equivalent amount of pages.
  • Daniel Martinez
  • General Manager, Large Format Business, HP
  • Its amazing to bring the most advanced HP printing technologies to support the teamwork of architects and engineers designing and building the future.
  • Guayente Sanmartn
  • HP Large Format Design Printing, HP

SPECIFICATIONS

  • Model size
    • 914mm
  • Functions
    • Print, Copy, Scan
  • Speed specifications
    • Print time line drawing (economode, A1 plain paper)
      10 seconds per A1
    • Print speed line drawing (economode, A1 plain paper)
      360 A1 prints per hour
    • Linear scan speed
      Up to 254mm/sec (200dpi colour)
      Up to 254mm/sec (200dpi greyscale)
  • Memory
    • Memory
      128GB
    • Internal storage
      256GB (AES-256 encripted)
  • Technical Specifications (Printer)
    • Print quality (best)
      Colour: Up to 2400 x 1200dpi optimised dpi
    • Print technology
      HP Thermal Inkjet
    • Number of print cartridges
      4 (cyan, magenta, yellow, matte black)
    • Ink types
      Pigment-based (C,M,Y,mK)
    • Ink drop
      6 pl (C,M,Y); 13.5pl (mK)
    • Number of printheads
      6 (2 x KM, X 2 x CY, 2 x MK)
    • Guaranteed minimum line width
      0.02mm (PDF addressable)
    • Line accuracy
      +/- 0.1%
  • Technical Specifications (Scanner)
    • Scan resolution, optical
      Up to 600dpi
    • Scanner technology
      Sheetfed, CIS (Contact Image Sensor)
    • Scan format
      JPEG, TIFF, multipage PDF
    • Scan destinations
      USB, shared network folder
    • Maximum scan length
      5m (PDF), 16m (TIFF), 8m (JPEG)
    • Maximum scanning thickness
      Up to 0.8mm
  • Dimensions and Weight
    • Dimensions (W x D x H)
      1603mm x 614mm x 1225 mm
    • Weight
      182 kg
  • Paper Handling
    • Finished output handling
      Direct printing from USB flash drive, print from network shared folder, FTP printing, HP driver for Windows, HP Print Service for Android, Apple AirPrint driver for macOS and iOS, HP Print for Chrome OS, HP Click, HP app for iOS and Android
    • Media types
      Bond and coated paper (bond, coated, heavyweight coated, recycled, plain, bright white), technical paper (natural tracing, vellum), film (clear, matte), photographic paper (satin, gloss, semigloss, premium, polypropylene), self-adhesive (adhesive, polypropylene)
    • Media weights, recommended
      60 to 328g/m2
    • Roll sizes
      369mm to 914mm, up to 200m length, 3 inch core
    • Maximum roll diameter
      180mm
    • Sheet sizes
      210mm to 279mm to 914mm x 1219mm
    • Standard sheets
      A4, A3, A2, A1, A0
    • Max print media thickness
      Up to 0.5mm
  • Connectivity
    • Interfaces
      Gigabit Ethernet (1000Base-T), supporting the following standards: TCP/IP, DHCP/AutoIP (IPv4 only), DHCPv6, SNMP (v1, v2c, v3), Apple Bonjour Compatible, WS Discovery, Embedded Web Server (HTTPS), IPsec, Raw IP printing (9100), LPD, IPP, WS print, NTLM, SMB (v1/CIFS, v2, v3), SSL/TLS, 802.1X authentication (LEAP, PEAP, EAP-TLS), DFS
    • Native print languages
      Adobe PDF 1.7, HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4
    • Printing paths
      Direct printing from USB flash drive, print from network shared folder, FTP printing, HP driver for Windows, HP Print Service for Android, Apple AirPrint driver for macOS and iOS, HP Print for Chrome OS, HP Click, HP app for iOS and Android
    • Drivers
      PDF, raster, and HP-GL/2 drivers for Windows, AirPrint for macOS
  • Power and operating requirements
    • Power consumption
      < 220 watts (printing + scanning), 50 watts (ready), <2.2 watts (sleep) (<14w with DFE), 0.2W (off)
    • Operating temperature range
      5 to 40C
    • Operating humidity range
      20 to 80% RH
    • Operating altitude
      Up to 3000m
  • Security
    • Security features
      HP SureStart, Secure Boot, Whitelisting, HP Runtime Intrusion Detection, HP Connection Inspector, TPM, Role Based Access Control, LDAP and Kerberos authentication, SNMPv3, HTTPS, Secure-IPP, IPsec/Firewall, Certificates management, 802.1X, TLS 1.0/1.1/1.2, HP Web Jetadmin compatible, HP Security Manager compatible, Secure Disk erase (DoD 5220.22-M), Secure File erase, self-encrypting HDD, encrypted PIN printing, Syslog security logging
  • Certification
    • Safety
      USA and Canada (CSA certified); EU (LVD and EN 62368-1 compliant); Russia, Belarus, Khazakstan (EAC); Ukraine (UA); Singapore (PSB); China (CCC); Argentina
      (IRAM); Mexico (NYCE); India (BIS)
    • Electromagnetic
      Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC)
    • Environmental
      Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC)
  • What's included
    • Warranty
      Two-year limited hardware warranty. Warranty and support options vary by product, country and local legal requirements.
    • What's in the box
      HP DesignJet XL 3800 Multifunction Printer, printhead (x6), introductory ink cartridges (x4), scanner calibration sheet, documentation, power cords, maintenance cartridge, stacker, basket (at rear), control panel, monitor arm
    • Software included
      HP Click for Windows and macOS, HP app for Windows, macOS, and mobile, HP Web Jetadmin, HP Security Manager, HP Easy Start, HP Print Scan Doctor, Mobile inOS printing, HP Wolf Security, MPS, HP Command Center
